SMT AI 3D AOI Equipment

3D AOI (Automatic Optical Inspection) Equipment can accurately inspect and measure the height dimensions of devices on PCBs, and provide clear side view images of ICs and various devices. When detected automatically, the AOI Equipment automatically scans the PCB through the camera, collects images, and compares the tested solder joints with the qualified parameters in the database. After image processing, the defects on the PCB are inspected and displayed/marked by display or automatic marking. This seamless integration of AOI Equipment into the inspection process enhances accuracy and efficiency, ensuring that manufactured products meet rigorous quality standards.

Compartir a

Product Details

The world's leading deep learning AOI system

1、High density marble platform:Provide guarantee for high precision imaging.

2、Multi-angle light source with high resolution camera and telecentric lens, greatly improve the detection effect.

3、The latest self – developed AAM absolute precision measuring system, accurate detection of 0201MM juntas de soldadura de componentes,30 mm detection height.

4、Can connect and integrate MES system according to factory requirements.

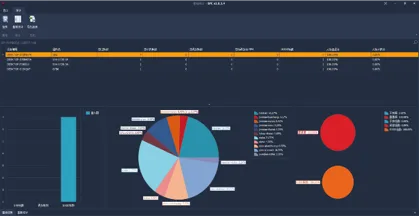

5、Powerful SPC software to provide rich and accurate statistics.

6、High precision motion system, ensure the high speed motion precision.

AI detection system

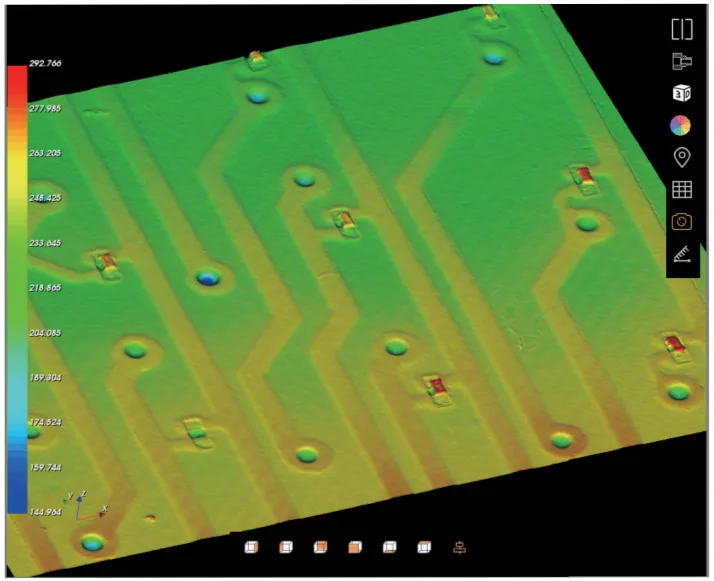

Verdadera detección 3D

1、Small Angle 4-way digit projection system,  eliminate small spacing occlusion to a greater extent, 8-way digit projection option.

2、Breakthrough Morie fringe algorithm to further reduce CT time.

Características del hardware

1、Large range bending board compensation.

2、High reflection suppression technology, accurate detection of solder joint defects.

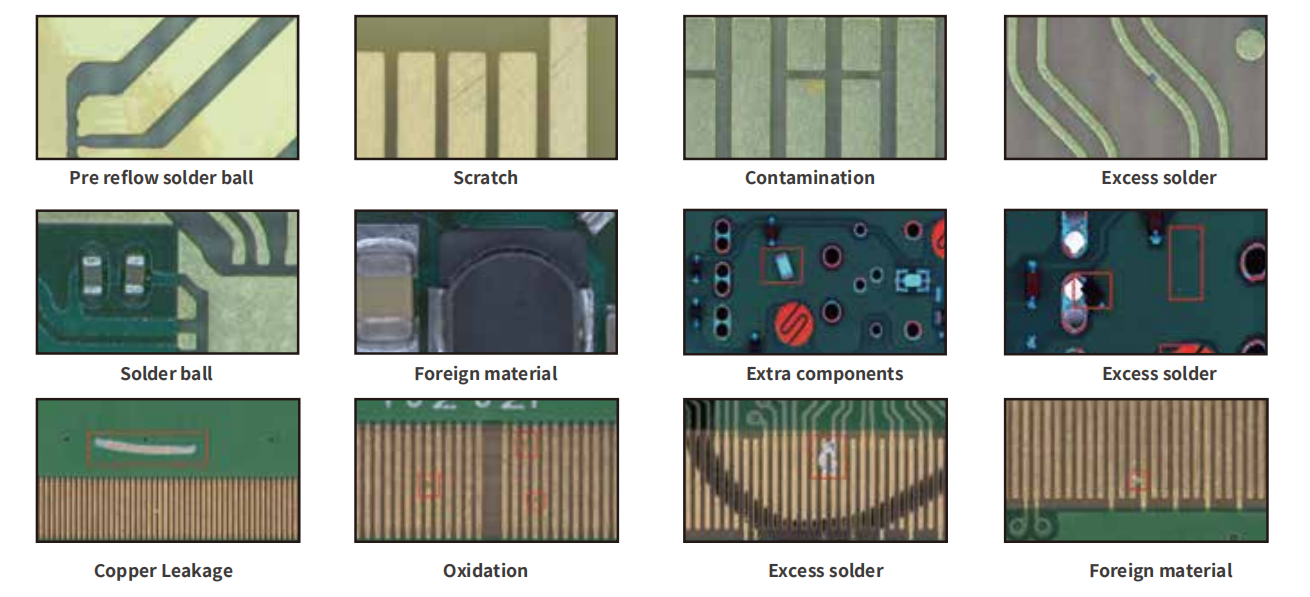

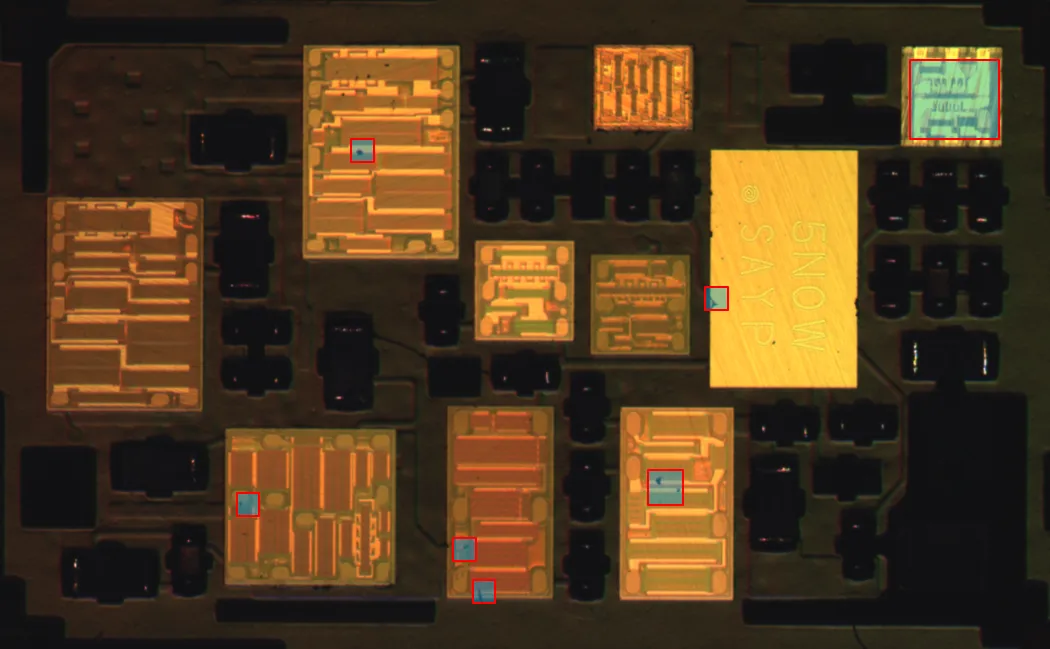

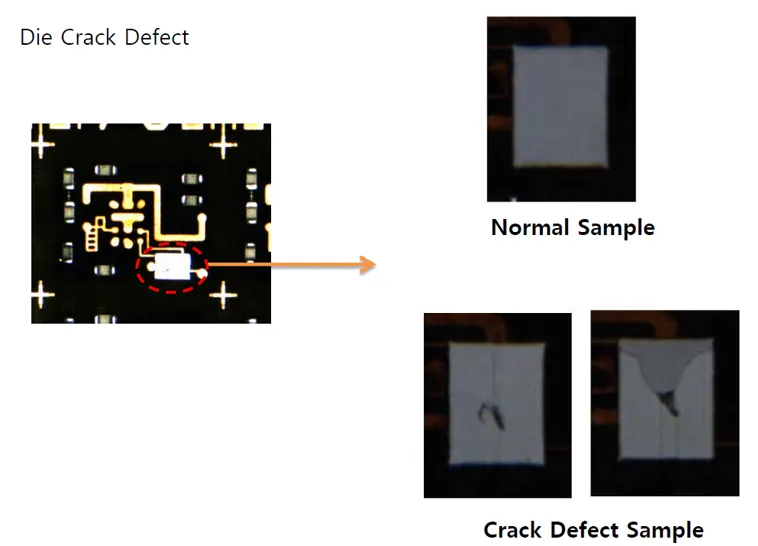

3、AI dete ctadle:Pre reflow solder ball、Scratch、Contamination、Solder ball、Foreign material、Extra components、Excess solder、Copper Leakage、Oxidation

Reflejos

1 、 para defectos indetectables PLCC y QFN, la cámara estándar del grupo DZ puede cumplirlo perfectamente

2, programación automática de Gerber

3 、 El riel dual admite la rehabilitación independiente en la estación de mantenimiento múltiple

4、Rejuicio de la nube ARMS

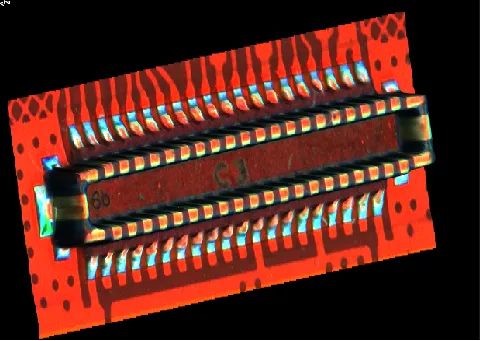

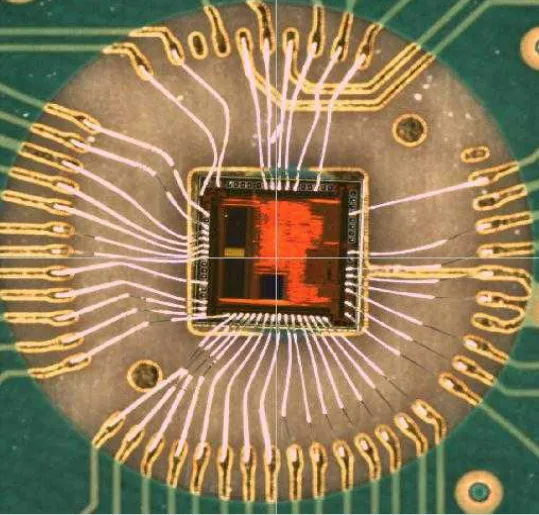

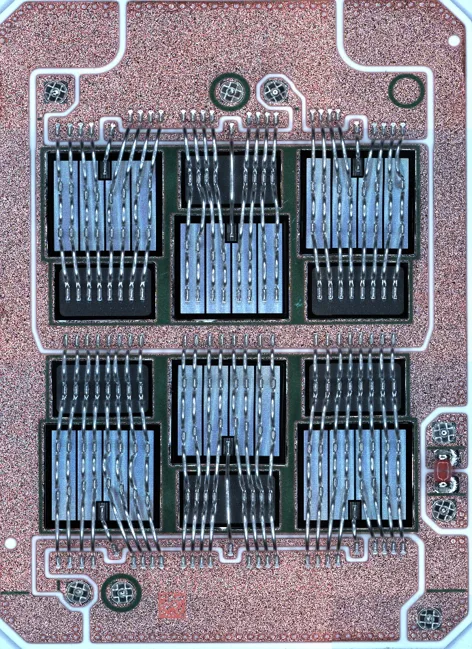

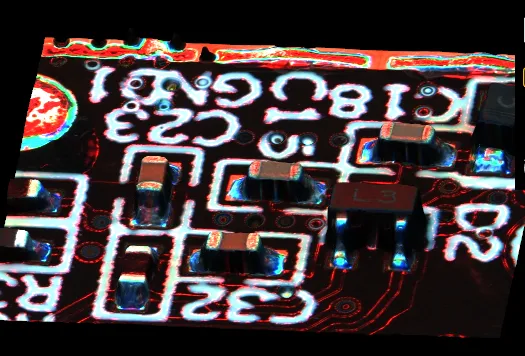

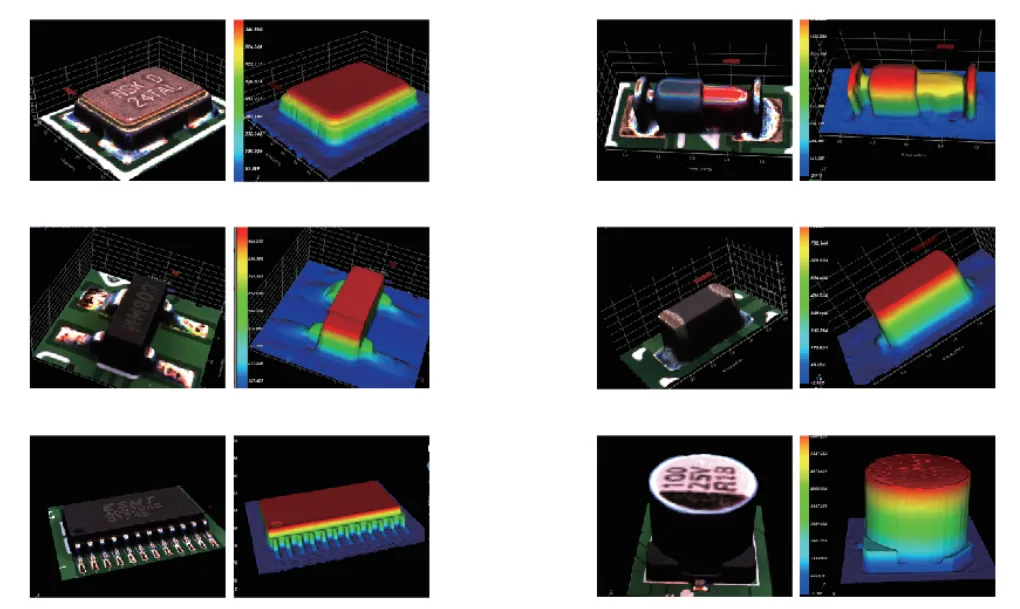

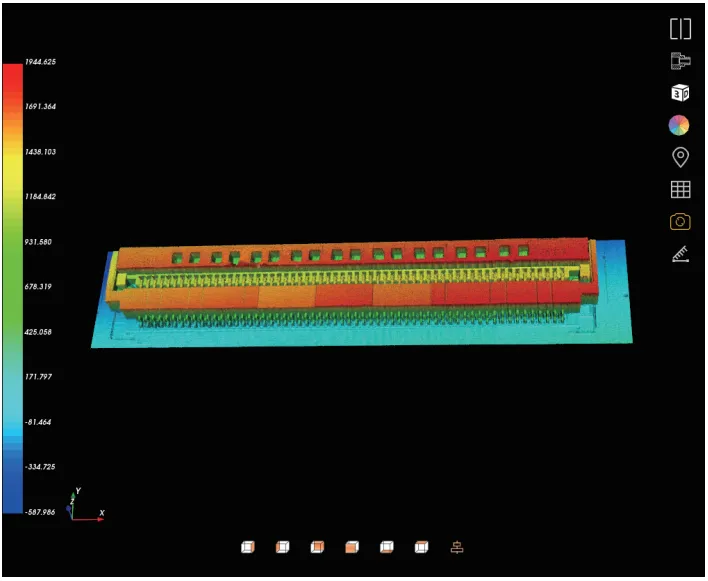

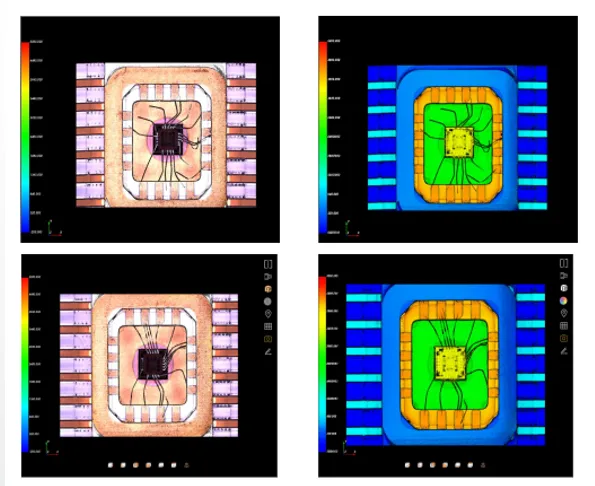

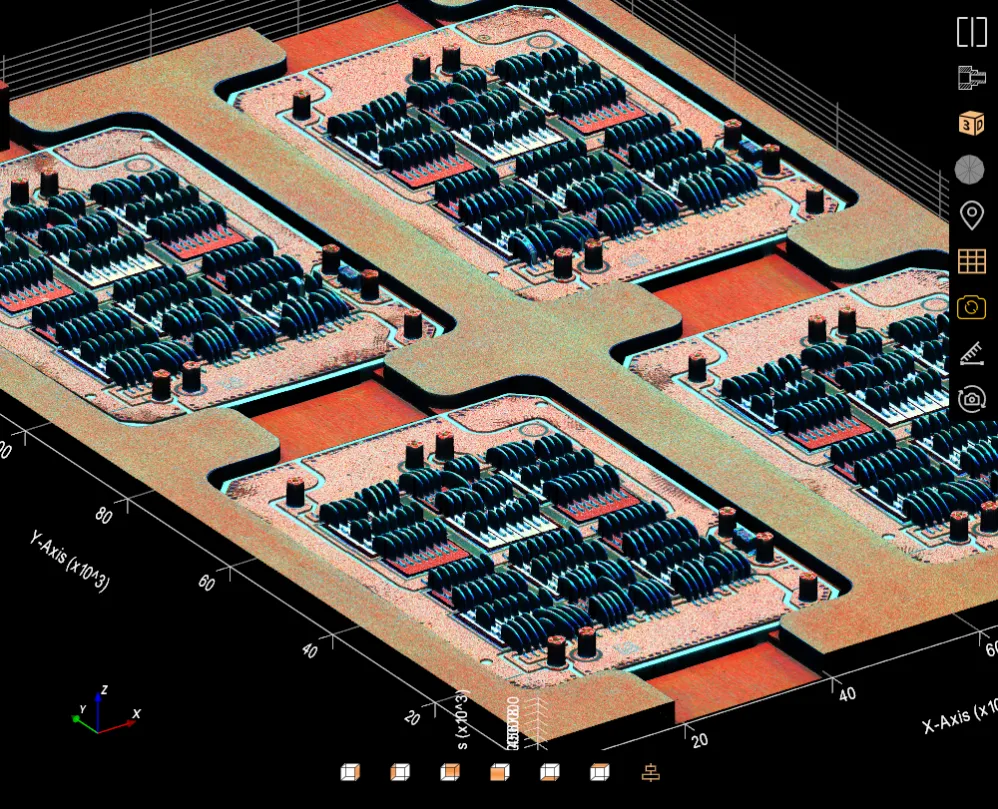

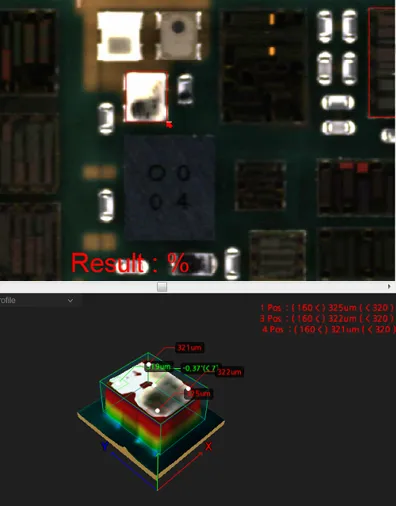

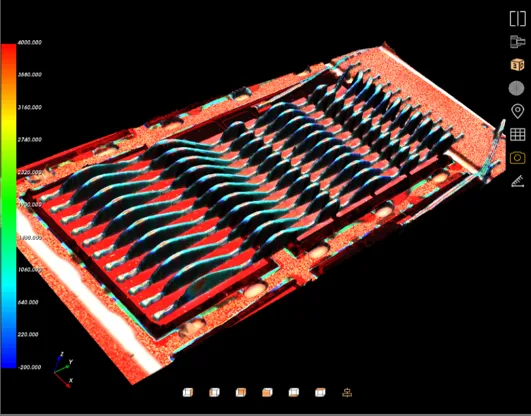

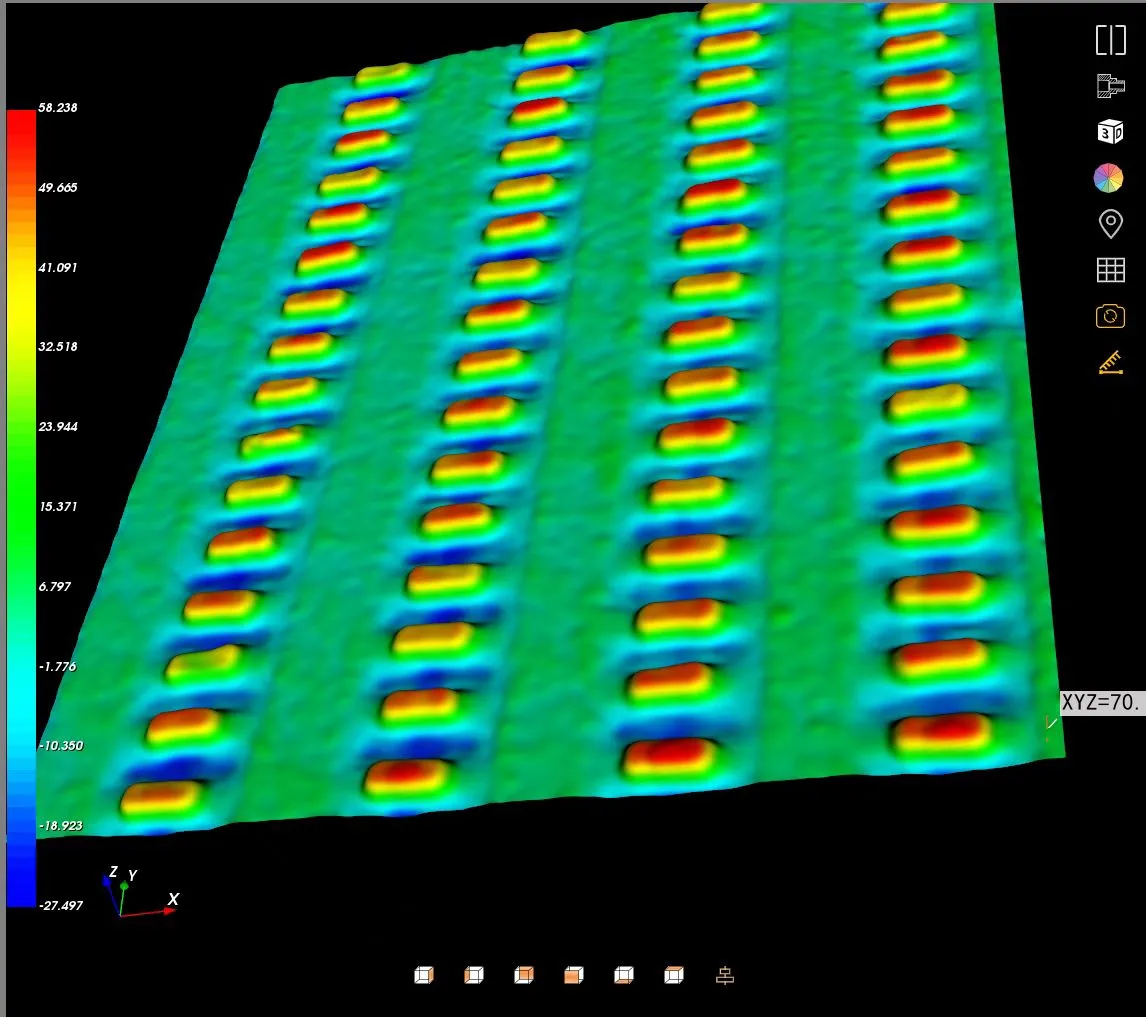

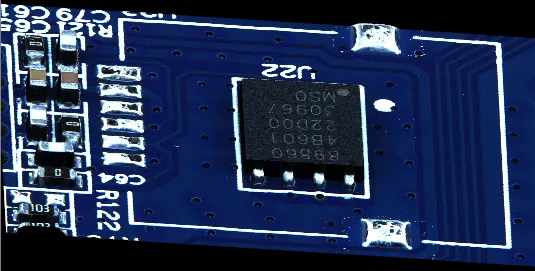

Componentes 3D SMT / miniLED / IGBT / WB golden line - -Imagen

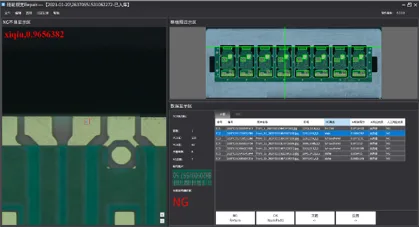

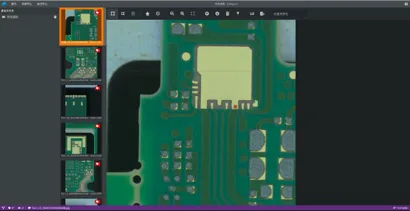

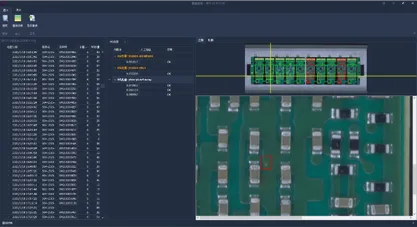

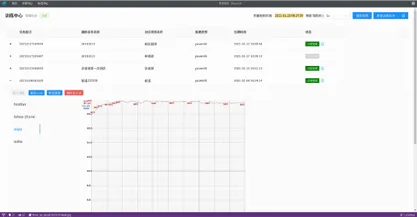

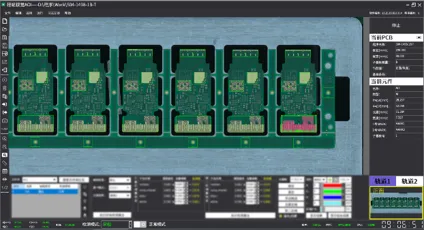

Matriz completa de software

Parámetros técnicos

Serie Alpha X510 Alpha X400D Alpha X850
Tipo  Single-Lane Dual-Lane Monorail
Vision system Vision system Standard:1200W;Optional:2100W
Relación de resolución 10μm/15μm
FOV size 40mm*30mm/60mm*45mm
Velocidad 30cm²/s   67.5cm²/s
Motion Mechanism Proyector Standard:4-way Projector,Optional:8-way Projector
 Exactitud ±1μm
XYZ Motion  servomotor de CA
Dirección  Left to right or right to left, adjustable
 Altura del riel 900±30mm
Electrical Fuente de alimentación 200V-230V AC 50/60Hz
Fuerza 3KW
Presión del aire 0.4-0.6MPa
Checking
Specifications
Tamaño de placa de circuito impreso 510*460mm 400*300mm*2(Dual-Lane)
400*590mm(Single-Lane)
(Optional 510D model):510*330mm*2
850*650mm
Altura de inspección Standard:25mm;Optional:40mm
Optional Function  Inteligencia artificial AI data training center
Funciones auxiliares MES/Barcode reading /Remote repair
articulo de INSPECCION Body defect detection Missing component、Offset、Reverse、polarity、Excessive component height、Billborading、Tombstoning、
Poor solder joint、Solder ball、Oxidation contamination、Foreign object、Scratches, etc
Golden finger and AI detection Gold surface scratches, Gold surface contamination,Copper leakage,oxidation,
Excess solder,Multiple components,solder balls
Serie Alpha X1200 Alpha X1500 Alpha X2000 Alpha X2500
Tipo Single-Lane or Dual-Lane
Vision system Vision system Standard:1200W;Optional:2100W
Relación de resolución 10μm/15μm
FOV size 40mm*30mm/60mm*45mm
Velocidad 30cm²/s   67.5cm²/s
Motion Mechanism Proyector Standard:4-way Projector,Optional:8-way Projector
 Exactitud ±1μm
XYZ Motion  servomotor de CA
Dirección  Left to right or right to left, adjustable
 Altura del riel 900±30mm
Electrical Fuente de alimentación 200V-230V AC 50/60Hz
Fuerza 3KW
Presión del aire 0.4-0.6MPa
Checking
Specifications
Tamaño de placa de circuito impreso 1200*500mm 1500*500mm 2000*500mm 2500*500mm
Altura de inspección Standard:25mm;Optional:40mm
Optional Function  Inteligencia artificial AI data training center
Funciones auxiliares MES/Barcode reading /Remote repair
articulo de INSPECCION Body defect detection Missing component、Offset、Reverse、polarity、Excessive component height、Billborading、Tombstoning、
Poor solder joint、Solder ball、Oxidation contamination、Foreign object、Scratches, etc
Golden finger and AI detection Gold surface scratches, Gold surface contamination,Copper leakage,oxidation,
Excess solder,Multiple components, solder balls

Paquete 3D y productos de prueba
