Laser Soldering Machine

  • Full closed-loop temperature feedback system, synchronous tin feeding mechanism, tin feeding stability, can directly control the temperature of the solder joint, real-time welding temperature curve, to ensure the yield of welding.
  • Laser, CCD, temperature measurement, indicating light four-point coaxial perfectly solves the problem of overlapping multi-optical paths in the industry and avoids complicated debugging.
  • Under the condition of ensuring excellent and good rate, the minimum diameter of welding spot is 0.3mm, and the welding time of single spot is shorter.
  • Single-machine workstation operation, easy to move, also can realize the customized design of automation equipment.
  • Constant solder joint temperature, dynamic control of laser power, can achieve gradient heating function.
  • Using digital algorithm, the control system is stable, accurate and fast.
  • Solder joint temperature 100-600℃ continuous adjustable.
  • The programmable design can independently adjust the parameters for different pads to meet the needs of different materials and sizes of pads.
  • Coaxial CCD camera positioning and processing monitoring system, clearly show the solder joint and timely correct the alignment, ensure the machining accuracy and automatic production.
Share to

Product Application

Brief introduction

Non-contact welding, no mechanical stress damage, small thermal effect. Multi-axis intelligent working platform (optional), can apply a variety of complex precision welding process, adapt to more devices welding.

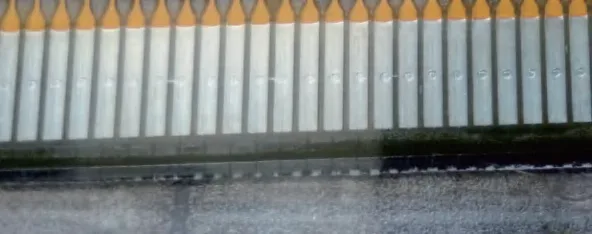

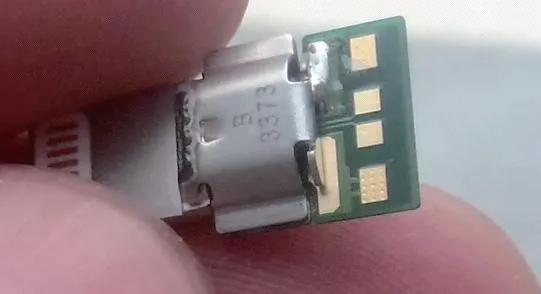

Applied Materials & Effects

Technical Parameters

Model No.

W Series

Laser Head

Fiber output laser

Laser Power

80W/100W Optional

Fiber core diameter

100um/200um/400um Optional

Power consumption

1KW

Minimum focus light

200um

Cooling spot mode

Full air cooling

Positioning

CCD coaxial positioning

Control mode

PC

Tin wire diameter

0.5mm

Optional tin wire diameter

0.3–0.8MM

Power Supply

AC220V/50Hz

Motion platform travel

X*Y*Z  200*300*200mm
