DIP AI AOI Equipment (Pre wave soldering)

  • The world’s first AOI that requires no parameter settings
  • Get started with extremely fast programming in 10 minutes
  • One-click intelligent search for more than 80 devices
  • No need to set parameters; get started quickly
  • The online capture first-piece board system assists in programming, and the automatic block diagram ratio is high
  • Supports continuous supplementary learning, and the proportion of automatic modeling after learning is higher (80%)
  • Support custom device names according to customer needs
  • Support system learning and training, the more you learn, the better the effect will be
Chia sẻ với

Product Details

No need to set parameters, 10 minutes rapid programming

1、No need to set parameters: Easy operation.

2、Online capture the first board system assisted to edit the program.high proportion of automatic block diagram.

3、Support continuous complementary learning, higher proportion ofautomatic modeling after learning (80%+).

4、Support to customize the modelname according to customer requirements.

5、Support quick change of work order number.

6、Support batch copy, paste, cut, delete and other shortcut key operations.

Intelligent assist creating template

1、The system assists create template rapidly , without setting any parameters.

2、One key intelligent search more than 80 kinds of equipment.

Remote debugging/offline programming

Support customer offline programming, customer remote control anddebugging.

learning

1、Support system learning training, the more learning the better effect.

2、Support local learning.

Local detection

Support most of the device body features are the same, only local differences in the device detection.

hiệu ứng ứng dụng

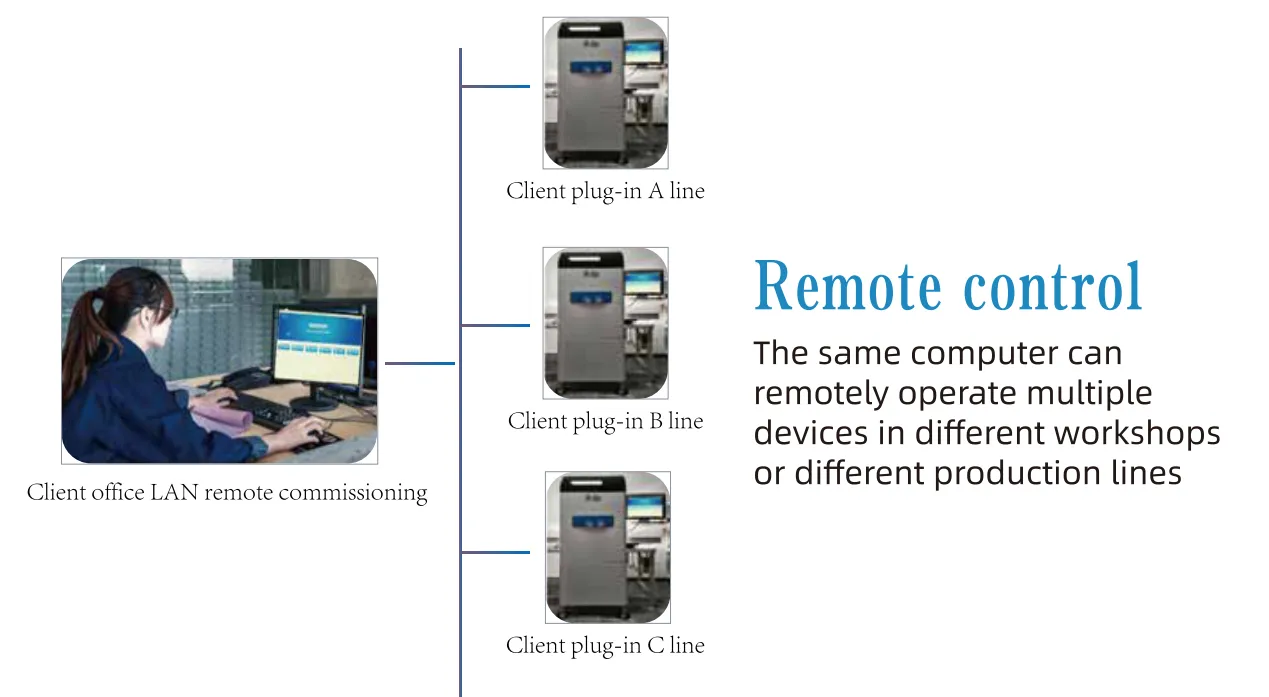

Điều khiển từ xa

Các thông số kỹ thuật

Usage ScenariosDetection ScenariosOnline Solder Joint Inspection System for Wave Soldering
Software System Operating SoftwareWIN10(X64)
Detection ItemsShort circuits, copper leakage, pins not protruding, missing components, pinholes, insufficient solder, SMT material body, and soldering issues
special functionDeep Learning Algorithm, Rapid Programming, Customized Model Training, Remote Control
Visual ImagingMáy ảnh500W, optional 1000W/1500W
ống kính15/20μm
Nguồn sángRGB or RGBW Integrated Ring Light Source
trường nhìn36mmx30mm-60mmx45mm
Photography ModeFlying Probe, 0.1s/Field of View (FOV)
Device Performance Industrial ComputerGPU: High-performance dedicated graphics card Memory: 16GB CPU: High-performance processor Disk: Solid State Drive + Hard Drive Network Card: Independent Gigabit Ethernet port
Màn hình22.5-inch LCD Monitor
Mobile StructureLinear Guide Rail + High-Precision Lead Screw + Servo Motor
những yêu cầu về môi trườngTemperature: -10~60 degrees Celsius, Humidity: 30%-90%RH, Pressure: 0.4~0.6MPa
Cân nặng750KG
DimensionsL1000*W1000*H1300mm
Nguồn cấp200V-230V AC 50/60Hz
Upstream and Downstream CommunicationStandard SMEMA Interface
Accessory SpecificationsInspection Dimensions50x50mm-510x460mm
Component Height上120mm,下40mm
Production Line Height750mm±25mm, with cushion block adapting to 750mm-950mm production lines
Maximum Speed800mm/giây

Kích thước
